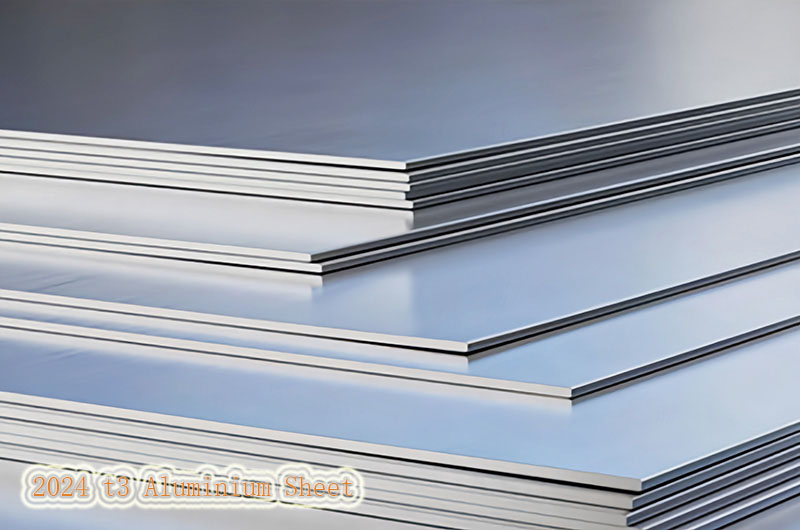

2024 T3 Aluminum Plate Sheet
Strict Quality Control Competitive Price
2024 T351 aviation aluminum plate is a high-strength aviation aluminum alloy material. T351 has large surface and internal residual stress and good explosion impact resistance. 2024 t351 is one of the aviation aluminum alloys. It is widely used in skins, bulkheads and structural parts that need to withstand high cyclic loads on various aircraft.
Table of Contents- What is Aluminum Grade 2024 T3?
- 2024 t3 Aluminum Plate Sheet Sizes
- Aluminum 2024 t3 Data Sheet
- What is 2024 T3 Aluminum Used for?
- 2024 t3 Alclad Aluminum Sheet vs 2024 t3 Clad Aluminum Sheet
What is Aluminum Grade 2024 T3?
Aluminum grade 2024 T3 is a high-strength aluminum alloy with good machinability and excellent fatigue resistance. It is a heat-treatable alloy consisting of copper as the main alloying element, with small amounts of magnesium, manganese, and silicon.
The T3 designation indicates that the aluminum has been heat-treated to achieve its strength properties. During heat treatment, the alloy is solution heat treated, quenched, and then artificially aged to obtain its desired properties.
2024 T3 is commonly used in aerospace applications such as aircraft structures and parts due to its high strength-to-weight ratio and excellent fatigue resistance. It is also used in other high-stress applications such as truck wheels, auto parts, and sports equipment.
2024 t3 Aluminum Plate Sheet Sizes
2024 t3 Aluminum Plate Sheet Specifications
2024 t3 Aluminum Plate Typical Sizes
| Product | Dimensions |
|---|---|
| 2024 t3 Aluminum Plate | 4x8ft |
| 2024 t3 Aluminum Plate | 4x12ft |
| 2024 t3 Aluminum Plate | 5x10ft |
| 2024 t3 Aluminum Plate | 6x12ft |
2024 t3 Aluminum Plate Typical Thicknesses
| Product | Inches (in) | Millimeters (mm) |
|---|---|---|
| 2024 t3 Aluminum Plate | 0.032 | 0.81 |
| 2024 t3 Aluminum Plate | 0.04 | 1.02 |
| 2024 t3 Aluminum Plate | 0.05 | 1.27 |
| 2024 t3 Aluminum Plate | 0.063 | 1.6 |
| 2024 t3 Aluminum Plate | 0.08 | 2.03 |
| 2024 t3 Aluminum Plate | 0.09 | 2.29 |
| 2024 t3 Aluminum Plate | 0.1 | 2.54 |
| 2024 t3 Aluminum Plate | 0.125 | 3.18 |
| 2024 t3 Aluminum Plate | 0.16 | 4.06 |
| 2024 t3 Aluminum Plate | 0.19 | 4.83 |
| 2024 t3 Aluminum Plate | 0.25 | 6.35 |
| 2024 t3 Aluminum Plate | 0.375 | 9.53 |
| 2024 t3 Aluminum Plate | 0.5 | 12.7 |
It's important to note that these sizes may vary depending on the supplier and manufacturer. It's best to check with a specific supplier or manufacturer for their available sizes and thicknesses.
2024 t3 Aluminum Plate Fabrication
- Welding: Not recommended for fusion welding, but can be successfully joined using resistance welding techniques.
- Machinability: Good machinability in the T3 temper, but cutting forces may be high.
Aluminum 2024 t3 Data Sheet
2024 T3 Aluminum Plate Mechanical Properties
- Ultimate Tensile Strength: 495 MPa
- Yield Strength: 324 MPa
- Elongation: 12%
- Hardness: 120 Brinell
2024 T3 Aluminum Plate Physical Properties
| Property | Value |
|---|---|
| Density | 0.101 lb/in^3 (2.80 g/cm^3) |
| Melting Range | 935 - 1180 °F (501 - 638 °C) |
| Thermal Conductivity | 88 Btu/(hr-ft-°F) (152 W/(m-K)) |
| Electrical Conductivity | 28% IACS (International Annealed Copper Standard) |
2024 T3 Aluminum Plate Chemical Composition
| Element | Weight Percentage |
|---|---|
| Aluminum | 90.7 - 94.7% |
| Copper | 3.8 - 4.9% |
| Magnesium | 1.2 - 1.8% |
| Zinc | 0.25% |
| Others | 0.15% max each, 0.05% max total, and 0.15% max for the remainder |
What is 2024 T3 Aluminum Used for?
2024 T3 aluminum is used in a variety of applications requiring a high strength-to-weight ratio, excellent fatigue resistance, and good machinability. Some common uses for 2024 T3 aluminum include:
- Aircraft Structures: Due to its high strength-to-weight ratio, it is used in a variety of aircraft structural applications, including wing and fuselage structures.
- Auto parts: Used in various auto parts such as wheels and drive shafts due to its high strength and fatigue resistance.
- Other Applications: For other high-stress applications such as bicycle frames, sports equipment, and various industrial applications.
2024 T3 Aerospace Aluminum Plate
2024 T3 aluminum plate is commonly used in the aerospace industry to manufacture aircraft structures and parts.
2024 T3 Aerospace Aluminum Plate It is used to produce wing and fuselage skins, spars, and structural components.
2024 T3 Automotive Aluminum Plate
2024 T3 aluminum is used to produce automotive components that require high strength and low weight, such as wheels, body panels, and suspension components.
Al 2024 t3 for Sporting Equipment
2024 T3 aluminum is used in the manufacture of sports equipment such as baseball bats, hockey sticks, and bicycle frames. Its high strength-to-weight ratio and good fatigue resistance make it an ideal material for these applications.
2024 t3 Aluminum Plate for Marine
2024 T3 aluminum is used in marine applications for its corrosion resistance in saltwater environments. 2024 t3 Aluminum is used for hulls, masts, and other structural components.
Aluminum 2024 t3 for Industrial Applications
2024 T3 aluminum is also used in various industrial applications such as heavy machinery, transportation equipment, and structural applications where high strength and low weight are important.
The high strength-to-weight ratio, good fatigue resistance, and machinability of 2024 T3 aluminum make it a versatile material with a wide range of uses.
2024 t3 Alclad Aluminum Sheet vs 2024 t3 Clad Aluminum Sheet
The 2024 T3 Alclad and 2024 T3 Clad Aluminum panels are both variations of 2024 T3 Aluminum, but they have different finishes.
2024 t3 Alclad Aluminum Sheet
The 2024 T3 Alclad aluminum plate has a layer of pure aluminum bonded to the surface of the 2024 T3 alloy. This cladding provides additional corrosion resistance and improves the overall appearance of the material. If desired, the Alclad layer can be removed by machining or other surface treatments.
The Alclad layer on 2024 T3 Alclad aluminum panels is usually applied using a hot rolling process. A layer of aluminum is melted onto the surface of the 2024 T3 alloy sheet, then the material is rolled to the desired thickness. The Alclad layer usually accounts for 5-10% of the total thickness of the board.
2024 T3 Alclad aluminum sheet is commonly used in aerospace applications such as aircraft skins, wings, and structural components. It is also used in other applications requiring high strength, good processability, and excellent fatigue resistance, such as sports equipment and industrial applications.
2024 t3 Clad Aluminum Sheet
2024 T3 composite aluminum plate is a high-strength plate that has a layer of 2024 T3 aluminum alloy bonded to a core material such as aluminum or composite. Composite layers provide additional strength and stiffness to the material, making them ideal for applications where high strength and low weight are important.
The 2024 T3 alloy used in the composite layer is a heat-treatable alloy with good machinability, excellent fatigue resistance, and a high strength-to-weight ratio. The core material used in 2024 T3 clad aluminum panels can vary depending on the specific application and desired properties of the material.
2024 T3 clad aluminum sheet is commonly used in aerospace applications, such as aircraft structures and components, where high strength and low weight are critical. It is also used in other industries that require lightweight and high-strength materials, such as automotive, marine, and sports equipment.
The performance of the 2024 T3 composite aluminum panel depends on the specific materials used for the composite layer and core material, as well as the manufacturing process.
Alclad and Clad variants of 2024 T3 aluminum sheet are commonly used in aerospace applications such as aircraft skins, wings, and structural components. The choice between Alclad and Clad depends on the specific application and the desired properties of the material. Alclad is preferred in applications where corrosion resistance and appearance are important, while Clad is preferred in applications requiring additional strength and stiffness.
-
