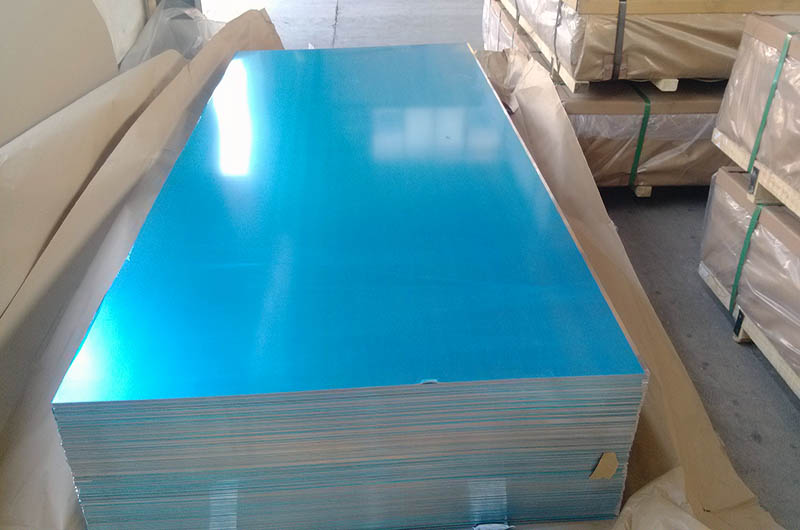

3003 h14 Aluminum Plate Sheet
Production standard: ASTM B209, AMS-QQ-A-250/2 Smooth and Defect-free Surface
3003-H14 aluminum plate has the characteristics of high strength, high durability, easy processing, strong corrosion resistance and light weight. 3003 aluminum is suitable for outdoor and harsh environment applications.
Table of Contents- What is 3003 H14 Aluminum Plate?
- Mechanical Property Limits
- Chemical Composition Limits
- Aluminum 3003 H14 Data Sheet
- What is the 3003 H14 Aluminum Plate Used for?
- Aluminum 3003 h14 Plate vs 5052 h32
- is 3003 h14 Aluminum Bendable
- What is the difference Between 3105 H24 and 3003 H14 Aluminum Plates?
- 3003 h14 Aluminum Plate vs 6061
What is 3003 H14 Aluminum Plate?
3003 H14 aluminum plate refers to a specific type of 3003 aluminum alloy that has been strain hardened and has the H14 temper designation. Here's what each component of the name means:
- Alloy: 3003 is an aluminum alloy consisting primarily of aluminum, manganese, and small amounts of other elements. It belongs to the 3xxx series of aluminum alloys known for their excellent formability, corrosion resistance, and moderate strength.
- H14 Temper: The "H14" temper designation indicates that the aluminum plate has been strain-hardened and subjected to a controlled annealing process to achieve specific properties. In the H14 temper, aluminum has been partially annealed and strain hardened, resulting in a material with moderate strength and good formability. This temper is characterized by its ability to bend easily and is often used in applications requiring forming or shaping.
-
3003 Aluminum Plate Sheet
3003 aluminum has excellent processability, weldability, and corrosion resistance. Compared with 1100 aluminum, 3003 aluminum is approximately 20% stronger.
-
3003 h22 Aluminum Plate
3003 - H22 has good strength, high durability, easy machining, high corrosion resistance and light weight. The popular product is mainly 3003-H22 Bright Aluminum Tread Plate.
-
3003 h24 Aluminum Plate
Ensure the 3003 h24 Aluminum Plate meets the required specifications including dimensional accuracy, chemical composition, mechanical properties, and surface finish.
-
3003 O Aluminum Plate Sheet
3003 O-state aluminum plate has low hardness, and 3003 O-state aluminum plate is suitable for stamping, spinning, stretching, etc.
Mechanical Property Limits
Specified Thickness(in) | Tensile Strength - KSI | Elongationin 2 inches % | |||
---|---|---|---|---|---|
Ultimate | Yield | ||||
Min | Max | Min | Max | ||
0.009 - 0.012 | 20 | 26 | 17 | - | 1 |
0.013 - 0.019 | 20 | 26 | 17 | - | 2 |
0.020 - 0.031 | 20 | 26 | 17 | - | 3 |
0.032 - 0.050 | 20 | 26 | 17 | - | 4 |
0.051 - 0.113 | 20 | 26 | 17 | - | 5 |
0.114 - 0.161 | 20 | 26 | 17 | - | 6 |
0.162 - 0.249 | 20 | 26 | 17 | - | 7 |
Chemical Composition Limits
Si Silicon | Fe Iron | Cu Copper | Mn Manganese | Mg Magnesium | Cr Chromium | Ni Nickel | Zn Zinc | Ti Titanium | Others Each | Total | Total Aluminum Min |
0.6 | 0.7 | 0.05 - 0.2 | 1.0 - 1.50 | - | - | - | 0.1 | - | 0.05 | 0.15 | Remainder |
Aluminum 3003 H14 Data Sheet
A comprehensive data sheet for the 3003 H14 Aluminum Plate, including its specifications, mechanical properties, and other pertinent information, providing detailed technical information on a particular product.
3003-h14 Aluminum Plate Specifications
-
Widths and Lengths: 3003 H14 Aluminum Plate is available in various widths and lengths. Exact dimensions may vary by supplier or manufacturer.
- Widths: From 36" (914mm) to 72" (1828mm).
- Lengths typically range from 96 inches (2438 mm) to 144 inches (3658 mm).
- Typical Dimensions: Common dimensions for 3003 H14 aluminum plate are 48 inches (1219 mm) wide and 96 inches (2438 mm) long.
However, it is important to note that paper sizes may vary by application and manufacturer.
3003 h14 Aluminum Plate Thickness
Thickness: 3003 H14 aluminum plate is available in various thicknesses to suit different applications. Common thicknesses for 3003 H14 aluminum plates typically range from 0.025" (0.63mm) to 0.125" (3.18mm), although thicker sheets are also available depending on the supplier.
Common Thicknesses for 3003 H14 Aluminum Plate
Thickness (inches) | Thickness (mm) |
0.025" 3003 H14 Aluminum Plate | 0.635 |
0.032" 3003 H14 Aluminum Plate | 0.8128 |
0.04 " 3003 H14 Aluminum Plate | 1.016 |
0.05 " 3003 H14 Aluminum Plate | 1.27 |
0.063" 3003 H14 Aluminum Plate | 1.6 |
0.08 " 3003 H14 Aluminum Plate | 2.032 |
0.09 " 3003 H14 Aluminum Plate | 2.286 |
0.125" 3003 H14 Aluminum Plate | 3.175 |
0.16 " 3003 H14 Aluminum Plate | 4.064 |
0.19 " 3003 H14 Aluminum Plate | 4.826 |
0.25 " 3003 H14 Aluminum Plate | 6.35 |
0.375" 3003 H14 Aluminum Plate | 9.525 |
0.5" 3003 H14 Aluminum Plate | 12.7 |
0.625" 3003 H14 Aluminum Plate | 15.875 |
0.75 " 3003 H14 Aluminum Plate | 19.05 |
1" 3003 H14 Aluminum Plate | 25.4 |
1.25 " 3003 H14 Aluminum Plate | 31.75 |
1.5" 3003 H14 Aluminum Plate | 38.1 |
3003 h14 Aluminum Plate Properties
- Formability: It has excellent formability and is suitable for bending, shaping deep drawing, and other processes.
- Corrosion Resistance: 3003 H14 Aluminum has good corrosion resistance, especially in wet or marine environments.
- Solderability: It has good solderability and can be easily joined using various welding techniques, including MIG and TIG welding.
3003 h14 Aluminum Plate Mechanical Properties
- Yield Strength: Typical values range from approximately 21, 000 psi (145 MPa) to 27, 000 psi (186 MPa).
- Tensile Strength: Typically between approximately 13, 000 psi (90 MPa) and 24, 000 psi (165 MPa).
- Yield Strength: Typically between approximately 21, 000 psi (145 MPa) and 27, 000 psi (186 MPa).
- Elongation: Typically around 20% to 30%.
The exact specifications and properties of the 3003 H14 aluminum plate may vary between different manufacturers or suppliers. It is therefore advisable to consult the specific data sheets provided by the manufacturer or to contact them directly for accurate and up-to-date information on the product.
What is the 3003 H14 Aluminum Plate Used for?
3003 H14 aluminum plate is used in a wide variety of industries and applications including general sheet metal, trailers, roofing, signage, kitchenware, and chemical equipment. Its combination of formability, corrosion resistance, and moderate strength makes it a versatile choice for many different uses.
3003 h14 Aluminum Plate for Curtain Wall
Aluminum alloy sheets for curtain walls mostly use 3003 h14 specifications, which mainly have sound insulation and thermal insulation effects. Aluminum plate curtain walls have good rigidity, are lightweight, have high strength, and good corrosion resistance, are easy to clean and maintain, and are not easy to stain.
3003 h14 is a typical Al-Mn alloy with good formability, very good corrosion resistance, and weldability, so it is very suitable for use in curtain walls.
Battery Aluminum Shell 3003 h14 Aluminum Plate
Battery case materials are mostly packaged in 3-series aluminum alloy cases. 3003 H14 aluminum plate is one of the most commonly used specifications for battery case materials. The main reason is that it is light in weight and is relatively safer than steel cases.
Battery case material 3003 h14 aluminum plate thickness: 0.4-0.60mm, it has good deep drawing performance, excellent weldability, high strength, excellent corrosion resistance, high-temperature resistance, radiation resistance, and fast heat dissipation, which can meet the needs of battery cases All standards for material breakage.
3003-h14 Aluminum Coil for Insulated Pipes
With the continuous improvement of science and technology, building pipe insulation is an effective way to save energy. The application of aluminum alloy insulation coils is becoming more and more widespread, and its future market development potential is getting better and better. Currently, it is used more in the market. The insulation pipe aluminum coils mostly use 3003-h14 aluminum coils.
- Thickness: 0.2mm-8mm
- Width: 100-2650
- Length: 500-16000
These are just a few examples of the wide range of applications for 3003 H14 aluminum. Its versatility and good performance make it a popular choice for industries requiring a combination of corrosion resistance, formability, and moderate strength.
Aluminum 3003 h14 Plate vs 5052 h32
- 3003 H14 Aluminum: It has good formability, corrosion resistance, and moderate strength. It is commonly used for general sheet metal work, roofing, siding, and chemical equipment.
- 5052 H32 Aluminum: It is a strain hardened and stabilized aluminum alloy with higher strength and better corrosion resistance than 3003 H14. 5052 H32 aluminum is commonly used in marine applications such as hulls, tanks, and structural components where high corrosion resistance is required.
is 3003 h14 Aluminum Bendable
Yes, 3003 H14 aluminum is bendable and can be easily formed and shaped using common metalworking techniques. The "H14" temper designation indicates that the aluminum has been strain-hardened to a 1/2 hard condition. This temper provides a good balance between strength and formability, making it suitable for bending, shaping, and forming operations without cracking or breaking.
When working with 3003 H14 aluminum, it's important to follow proper bending practices to achieve the desired results while minimizing the risk of defects. Here are some tips for bending 3003 H14 aluminum:
1. Material Thickness: Thicker plates may require more force and a larger bending radius to avoid cracking. Thinner plates are generally more easily bendable.
2. Bending Radius: Use an appropriate bending radius to prevent cracking. The radius should be at least 1.5 to 2 times the thickness of the material.
3. Tooling: Use suitable tooling and dies designed for aluminum bending. Sharp, smooth-edged dies are preferred to minimize the risk of surface defects.
4. Annealing: If you encounter difficulties during bending or if the aluminum plate is too stiff, you can consider annealing the material. Annealing involves heating the aluminum to a specific temperature and then cooling it slowly. This process can help soften the material and improve its formability.
5. Bend Orientation: Consider the direction of the grain in the aluminum when bending. Bending perpendicular to the grain is often easier and results in fewer defects.
6. Springback: Be aware of springback, which is the tendency of the material to return to its original shape after bending. You may need to overbend the aluminum slightly to achieve the desired final shape.
7. Safety: Always follow safety precautions when working with metal, including using appropriate personal protective equipment.
Keep in mind that while 3003 H14 aluminum is highly formable, the exact bendability may also depend on factors such as the specific alloy composition, the thickness of the material, and the equipment and techniques used for bending.
What is the difference Between 3105 H24 and 3003 H14 Aluminum Plates?
The main difference between 3105 H24 and 3003 H14 is the specific alloy composition and temper designation. Here are the main differences:
1. Alloy Composition
- 3105: 3105 is an aluminum alloy whose main components are aluminum, manganese, and a small amount of magnesium. It is known for its excellent corrosion resistance and good formability.
- 3003: 3003 is also an aluminum alloy, the main components are aluminum and manganese. It has good formability, moderate strength, and excellent corrosion resistance.
2. Application
- 3105 H24 is typically used in applications requiring high corrosion resistance, such as architectural exteriors, roofing, and automotive parts.
- 3003 H14 is typically used for general sheet metal work, roofing, siding, and chemical equipment.
3. Temper
- H24: Both 3105 H24 and 3003 H14 are marked with an "H" temper, indicating that they have been strain hardened. The "24" in 3105 H24 indicates a specific level of hardness and work hardening through a strain hardening process.
- H14: 3003 The "14" in H14 represents a different degree of hardness and work hardening than H24 tempering. It stands for semi-hard temper, which is achieved by strain hardening and partial annealing. The H14 temper provides improved formability while still maintaining moderate strength levels.
The main difference between 3105 H24 and 3003 H14 is their specific alloy composition and resulting properties. 3105 H24 has increased corrosion resistance and is often used in applications where corrosion protection is critical. On the other hand, 3003 H14 offers better formability while still maintaining good strength and corrosion resistance, making it suitable for general sheet metal working and various other applications.
3003 h14 Aluminum Plate vs 6061
- 3003 H14 Aluminum: It is a strain hardened and partially annealed aluminum alloy. It has good formability, corrosion resistance, and moderate strength. 3003 H14 aluminum is typically used for general sheet metal, roofing, siding, and chemical equipment where good formability is required.
- 6061 Aluminum: Compared with 3003 H14, it is a heat-treatable aluminum alloy with higher strength. 6061 aluminum has excellent machinability and good corrosion resistance and is commonly used in structural applications such as frames, bridges, and automotive parts.
