5086 h32 Aluminum Plate Sheet

Stable Performance Competitive Prices

5086-H32 Aluminum is 5086 aluminum in the H32 condition. To achieve this state, the metal is strain-hardened and then stabilized to about one-fourth the strength between annealed (O) and fully hard (H38).

1. Aluminum Plate 5086 H32 Specifications
2. 5086 h32 Aluminum Plate Properties
3. 5086 h32 Aluminum Plate Mechanical Properties
4. Chemical Composition of 5086 Plate
5. 5086 h32 Aluminum Plate Applications
6. 5086-H32 Aluminum Sheet Stock List

5086 H32 Aluminum Plate is an aluminum alloy that is commonly used in marine applications due to its excellent corrosion resistance and high strength. It belongs to the 5xxx series of aluminum alloys known for their moderate to high strength and good formability.

"5086" refers to a specific alloy composition of aluminum, consisting primarily of aluminum, magnesium, and manganese. The addition of magnesium provides increased strength and corrosion resistance, making it suitable for use in marine environments where exposure to salt water may occur.

The "H32" designation indicates the temper or hardness of the aluminum plate. H32 refers to the strain and steady state achieved by a controlled heating and cooling process. This temper provides a good balance of strength and formability, making it suitable for a variety of manufacturing processes.

5086 H32 aluminum plate is usually used in offshore hulls, decks, superstructures, and other structures that require resistance to saltwater corrosion. It is also used in other applications such as transportation, truck trailers and structural components where strength, and chemical resistance are critical.

5086 Aluminum Sheet Plate can be easily welded, machined, and formed, offering versatility in fabrication. It usually comes in various thicknesses, widths, and lengths to suit different project requirements.

Aluminum Plate 5086 H32 Specifications

5086 H32 Aluminum Plate Thickness

Commonly used thicknesses range from 0.032 inches (0.8 mm) to 0.25 inches (6.35 mm) and thicker. Thicker sheets are also available for specific applications.

5086 H32 Aluminum Plate Size

Aluminum plate 5086 H32 comes in a variety of sizes, with standard sizes typically falling within the range of 4 feet (1.22m) wide and 8 feet (2.44m). However, custom sizes are also available upon customer request.

5086 H32 Aluminum Plate Width/Length Range

Aluminum Plate 5086 H32 can vary in width and length depending on the particular manufacturer or supplier.

• Typically: from 36 inches (0.91m) to 72 inches (1.83m)
• Length: From 96 inches (2.44 meters) to 144 inches (3.66 meters)

Likewise, custom sizes are available for specific project needs.

5086 H32 Aluminum Plate Surface Treatment type

Aluminum Sheet 5086 H32 is usually available with a mill finish which gives a smooth and untreated surface. Other surface treatments or finishes such as anodizing or painting can be applied upon customer request.

5086 h32 Aluminum Plate Properties

5086 H32 aluminum has specific properties suitable for various applications. Here are the key properties of 5086 H32 aluminum:

• Strength: 5086 H32 has good strength properties making it suitable for structural applications. The H32 temper is achieved by strain hardening resulting in increased strength compared to the annealed condition.
• Corrosion Resistance: 5086 H32 aluminum has excellent corrosion resistance, especially in marine and saltwater environments. Its high magnesium content enhances protection against corrosion, making it suitable for marine applications such as ship hulls and other components exposed to harsh conditions.
• Weldability: 5086 H32 Aluminum is considered weldable using common welding methods such as MIG (GMAW) and TIG (GTAW). Proper cleaning, preparation, and selection of compatible filler materials are critical to achieving strong and reliable welds.
• Machinability: While 5086 aluminum is generally considered to have fair to good machinability, the H32 temper can present some challenges due to its increased strength. Proper cutting tools and machining techniques are recommended to obtain the desired results.
• Density: 5086 H32 aluminum has a density of approximately 0.0975 lb/in³ (2.69 g/cm³), making it a relatively lightweight material for weight-sensitive applications.
• Electrical Conductivity: 5086 H32 aluminum has good electrical conductivity, making it useful in electrical and electronic applications where electrical conductivity is important.
• Expressability: The alloy maintains excellent expressivity even at H32 temperature. It can be easily bent, shaped, and fabricated without compromising its mechanical properties, allowing the creation of complex components.

NOTE: These characteristics are typical and may vary based on specific manufacturing processes, material thickness, and other factors. When using 5086 H32 aluminum, it is recommended to consult the manufacturer's data sheet or specification for precise property information based on the specific product and temperature conditions.

5086 h32 Aluminum Plate Mechanical Properties

The mechanical properties of aluminum sheet 5086 H32 may include the following typical values:

• Tensile Strength: 40, 000-55, 000 PSI (275-380 MPA)
• Yield Strength: 23, 000-33, 000 PSI (160-230 MPA)
• Elongation: 12%-18%
• Modulus of Elasticity: 10, 300 KSI (71 GPA)

Chemical Composition of 5086 Plate

The chemical composition of aluminum plate 5086 H32 usually meets the following range:

NOTE: Exact specifications may vary between different manufacturers or suppliers. When sourcing Aluminum Paper 5086 H32, it is advisable to consult the supplier's data sheet or specification for precise information on dimensional availability, mechanical properties, and chemical composition.

5086 h32 Aluminum Plate Applications

Common Applications: 5086 H32 Aluminum Sheet is commonly used in marine and offshore applications due to its combination of strength, corrosion resistance, and formability. It is used for hull hulls, decks, superstructures, tanks, and other structures subject to rigorous environments. Additionally, it is used in general metal fabrication, transportation industry components, and construction applications.
5086 H32 Aluminum Sheet is commonly used in a variety of applications where strength, corrosion resistance, and performance are required. The following are some typical applications of 5086 H32 aluminum:

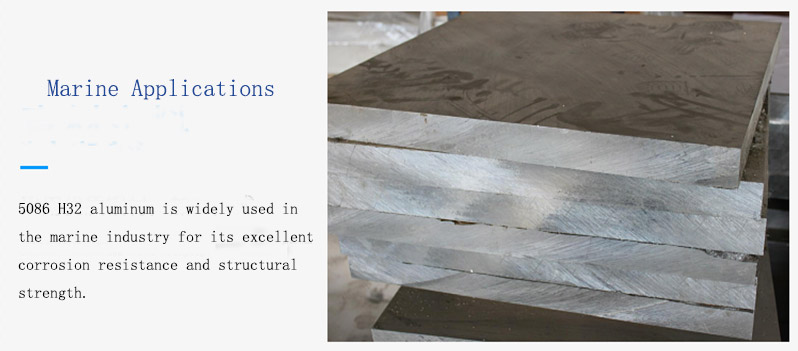

• Marine and Offshore Applications: 5086 H32 aluminum is widely used in the marine industry for its excellent corrosion resistance and structural strength. It is used in hulls, decks, superstructures, masts, and other components exposed to saltwater and harsh marine environments.


• Shipbuilding: The combination of strength, lightweight properties, and corrosion resistance make 5086 H32 ideal for a variety of shipbuilding applications, including hull hulls, bulkheads, and structural components.
• Pressure Vessels: 5086 H32 Aluminum is ideal for making high strength and corrosion resistant pressure vessels and tanks. It is commonly used in cryogenic storage tanks, chemical storage tanks, and fuel tanks.

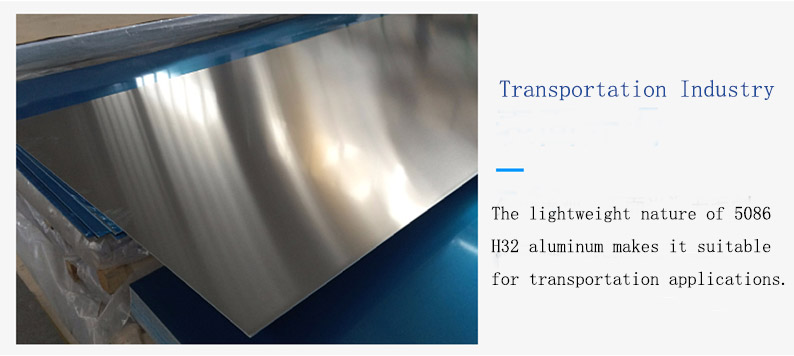

• Transportation Industry: The lightweight nature of 5086 H32 aluminum makes it suitable for transportation applications. It is used in truck trailers, refrigerated trucks, rail cars, and other vehicles where weight reduction is important.


• Architectural Applications: 5086 H32 Aluminum is used in architectural projects where strength, corrosion resistance, and aesthetic appeal are required. It is used for roofs, cladding, facades, and decorative elements.
• General Sheet Metal Fabrication: This alloy is used in a variety of sheet metal fabrication applications including panels, enclosures, covers, and structural components across different industries.
• Offshore structures: 5086 H32 aluminum is used in the construction of offshore platforms, drilling rigs, and other offshore structures due to its corrosion resistance in saltwater environments.
• Industrial Applications: The combination of strength and corrosion resistance makes 5086 H32 suitable for industrial applications such as chemical processing equipment, heat exchangers, and storage tanks.

When selecting 5086 H32 aluminum plate, it is important to consider the specific requirements and regulations of each application. Additionally, consultation with industry professionals or suppliers can provide further guidance on the suitability and optimization of materials for a particular project.

• 5086 Aluminum Plate Sheet

  5086 aluminum is not strengthened by heat treatment, but rather becomes stronger by strain hardening or cold machining of the material. 5086 aluminum sheet is commonly used in marine, cryogenic, pipeline, military, chemical and gas/oil/petroleum applications.

• 5086 h111 Aluminum Plate Sheet

  5086 h111 Aluminum Plate Sheet conforms to industry standards and specifications, the material has a consistent thickness, stable performance, smooth surface, and no defects such as cracks, voids, or impurities.

• 5086 h116 Aluminum Plate Sheet

  5086 h116 aluminum plate sheet complies with industry standards and specifications, with a smooth surface and no defects at competitive prices.
